RS9200CT vibration displacement transmitter
Your location：> Home> Products> Two-wire vibration displacement transmitter> RS9200CT vibration displacement transmitter

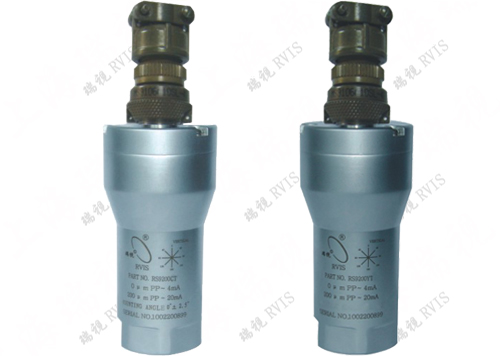

RS9200CT vibration displacement transmitter

RS9200CT vibration displacement transmitter is used to measure the vibration amplitude of key mechanical equipment bearing shells. Output 4-20mA directly corresponding to vibration amplitude 0-Kum.


Details

Product Details

■ Electrical characteristics of products

■ Power supply range:+24vdc 10%;

■ Watt vibration measurement range: 0 ~ 500 um (p-p), with selectable range;

■ Frequency response range: 6 Hz ~ 1 kHz (-1.5 dB);

■ Working mode: horizontal / vertical;

■ Input connection mode: Terminal leads or aviation connectors;

■ Signal output: Two-wire system outputs 4 ~ 20mA corresponding vibration amplitude, that is, (0 ~ kmm / s), and two-wire system can be conveniently connected to DCS and other systems;

■ Load: 0 ~ 500 ω;
